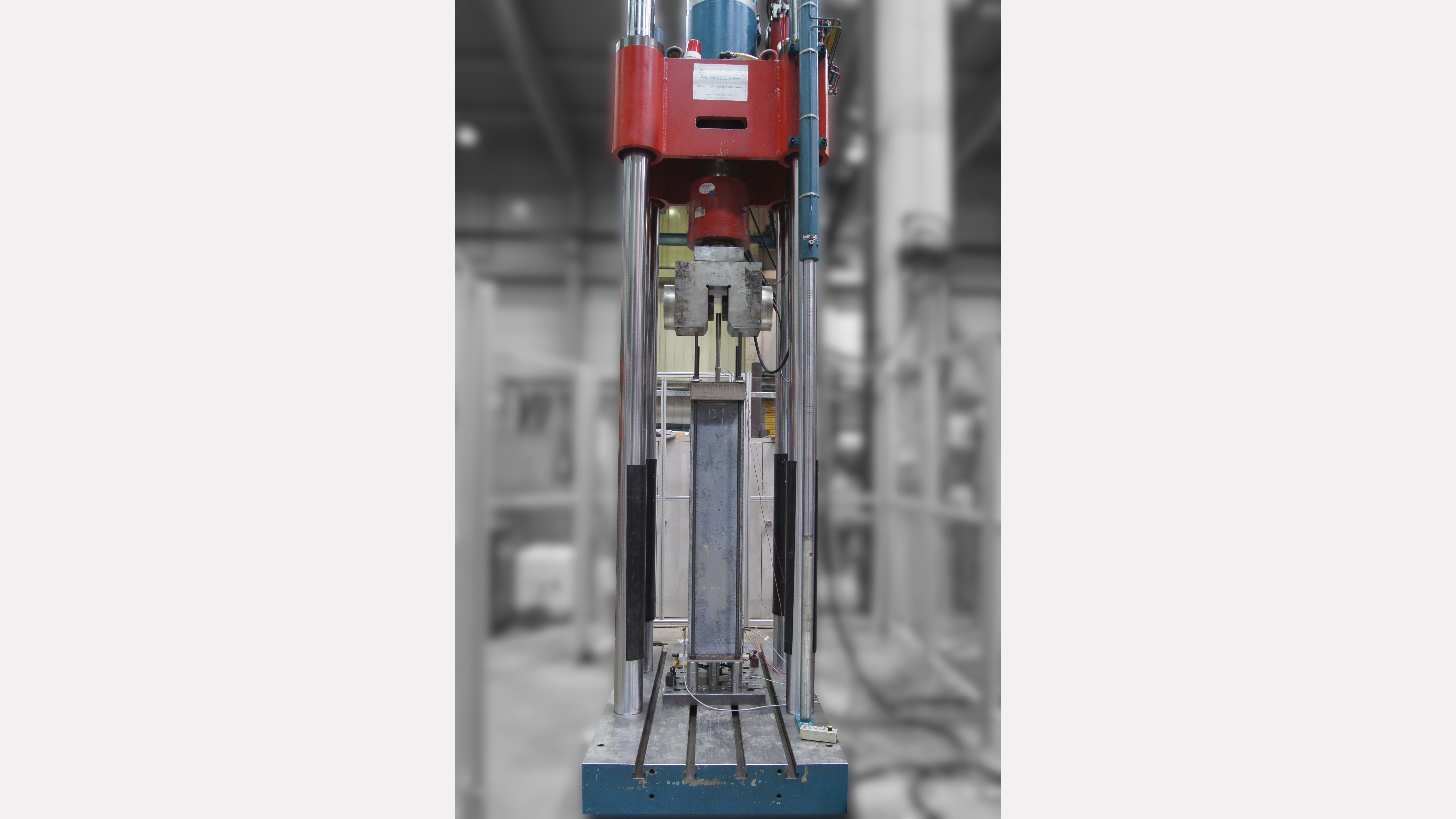

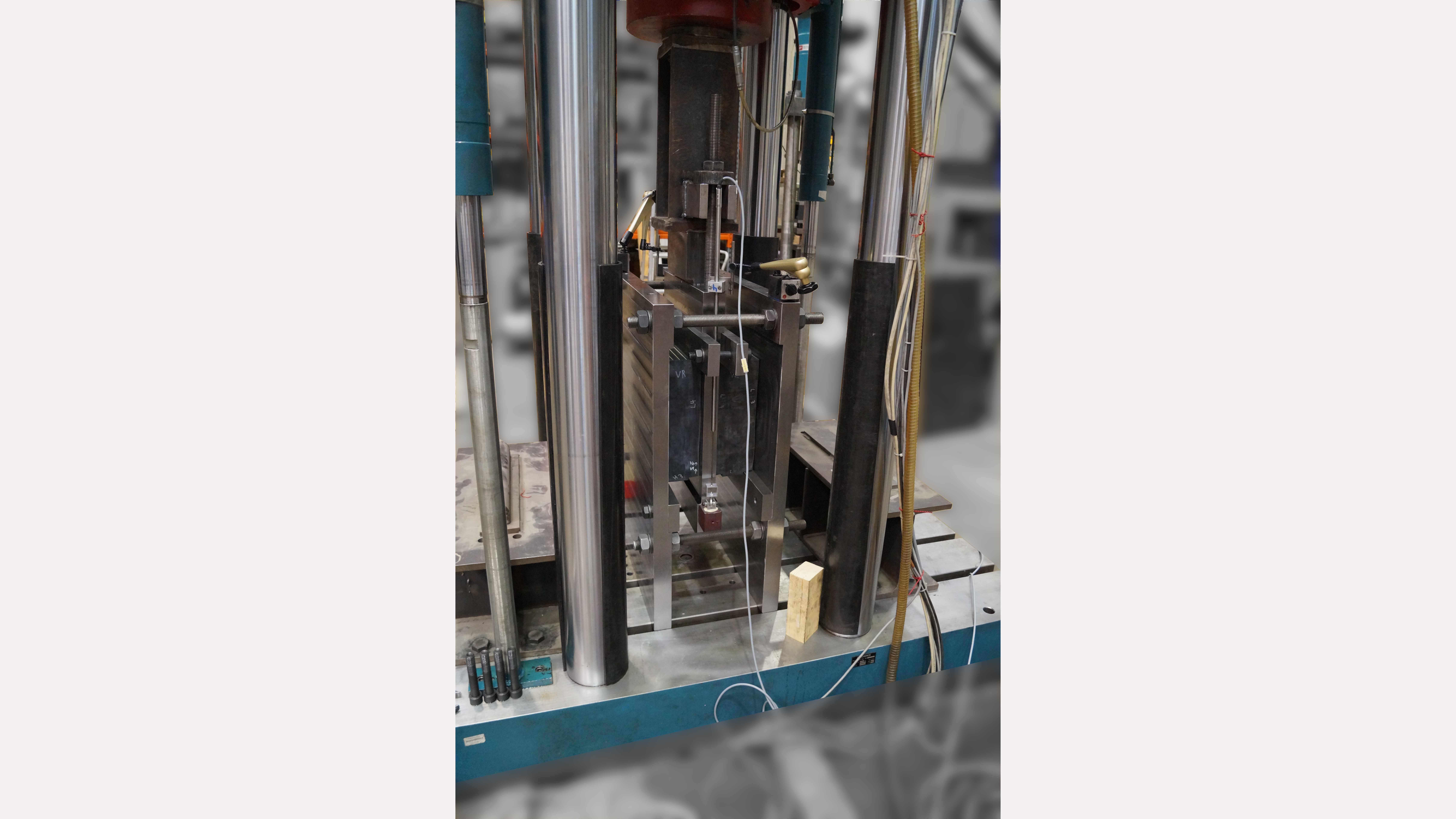

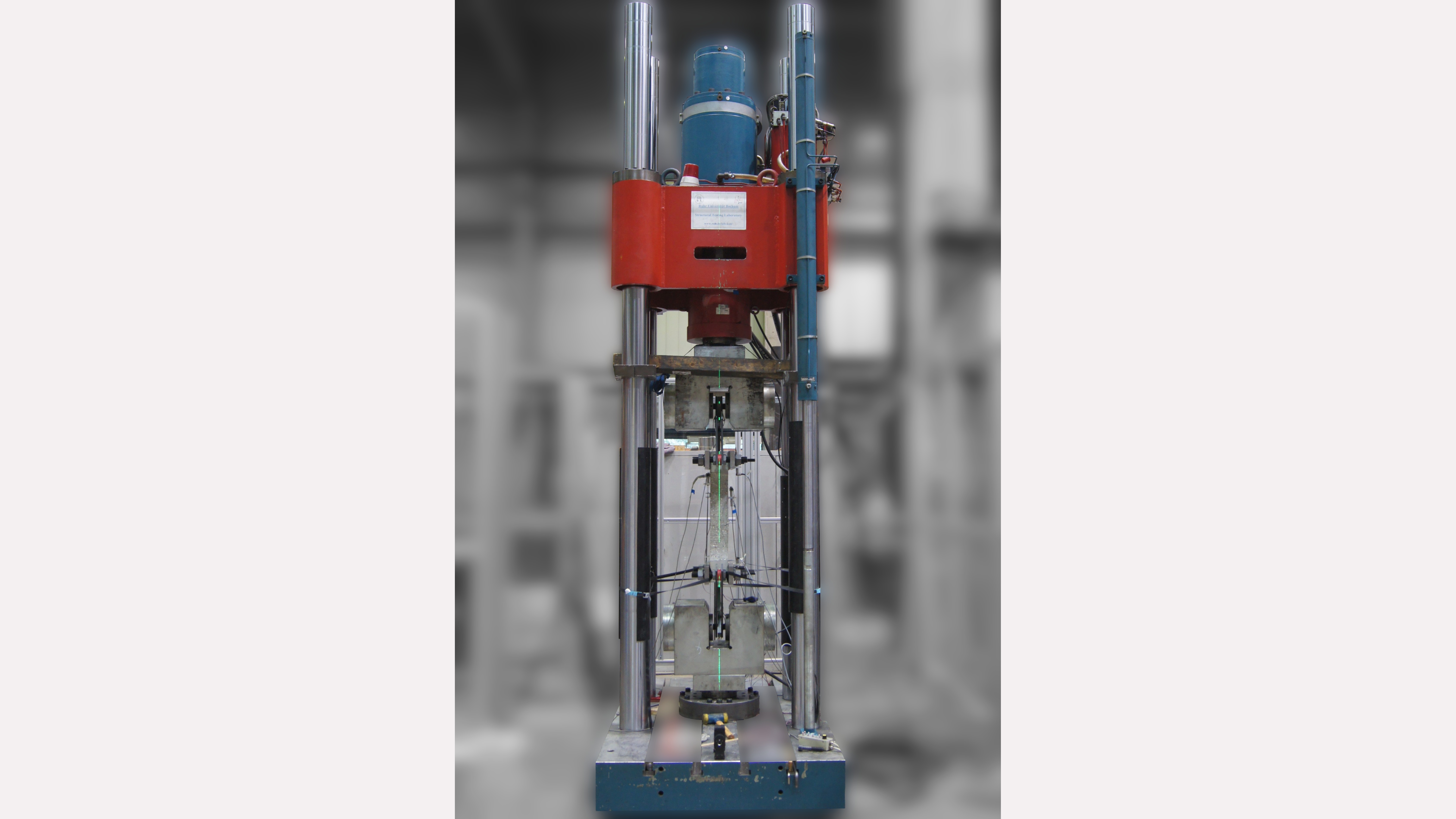

1000 kN Testing Machine
Technical Data
Servohydraulic Control
Max. Force
Static
± 1.000 kN
Dynamic
± 800 kN
Space between Columns
750x560 mm²
Maximal Length of Specimen
1.900 mm
Maximal Stroke of Actuator
250 mm
Servo Valve Rated Flow
250 l/min
