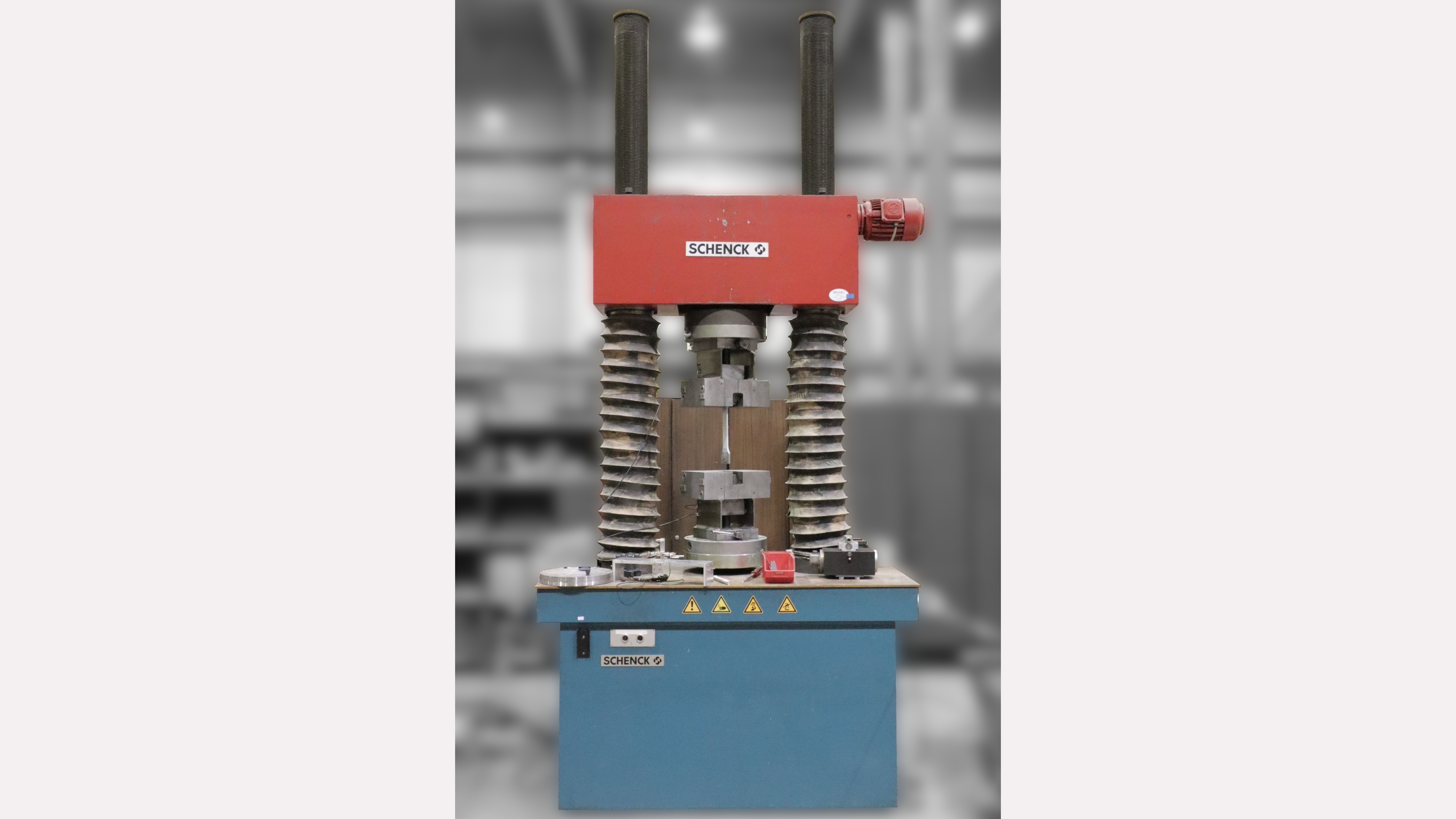

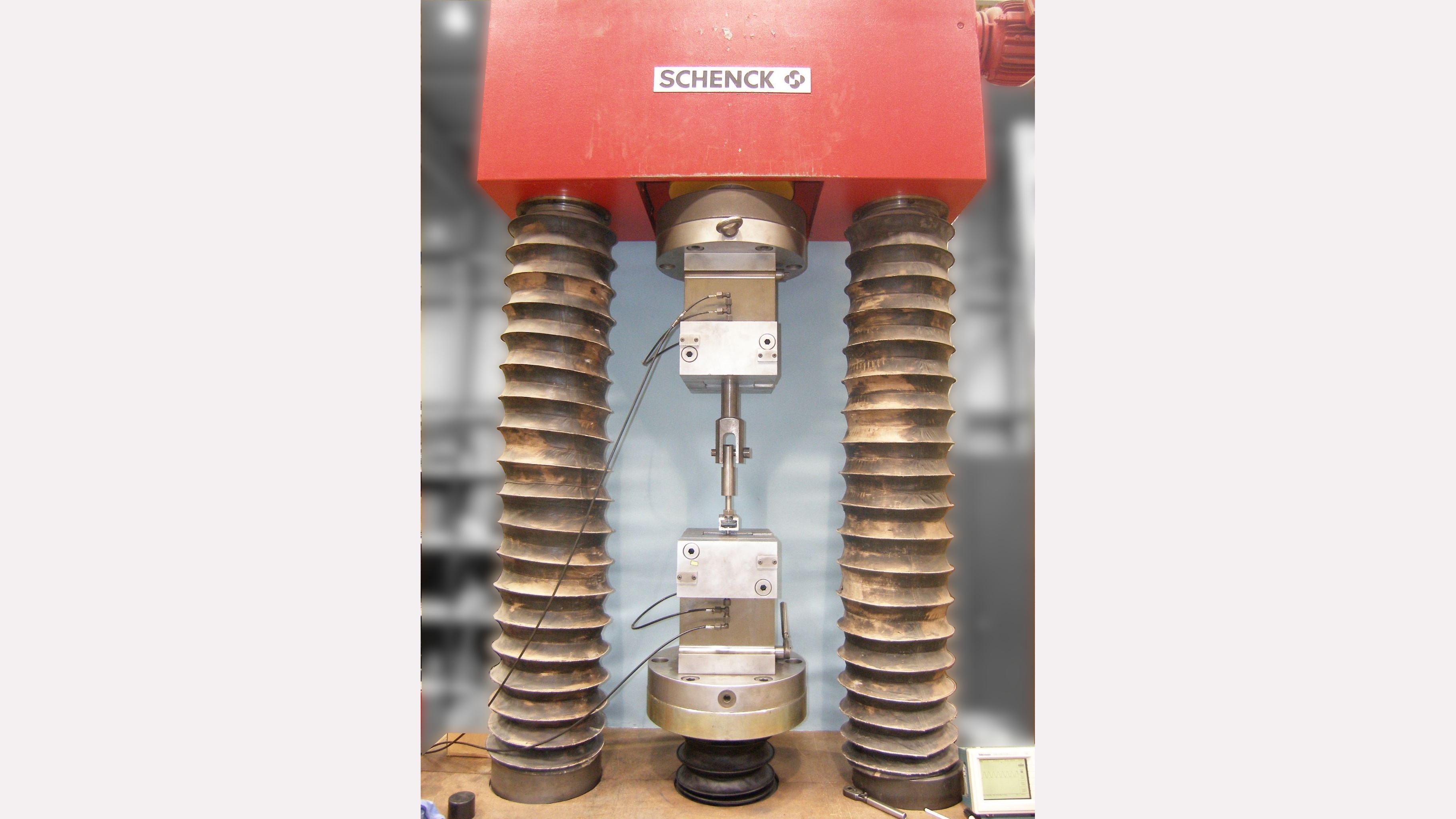

400 kN Testing Machine
Technical Data
Servohydraulic Control
Max. Force
Static
± 400 kN
Dynamic
± 320 kN
Space between Columns
840 mm
Maximal Length of Specimen
1.300 mm
Maximal Stroke of Actuator
250 mm
Servo Valve Rated Flow
64 l/min
1 / 2
2 / 2
