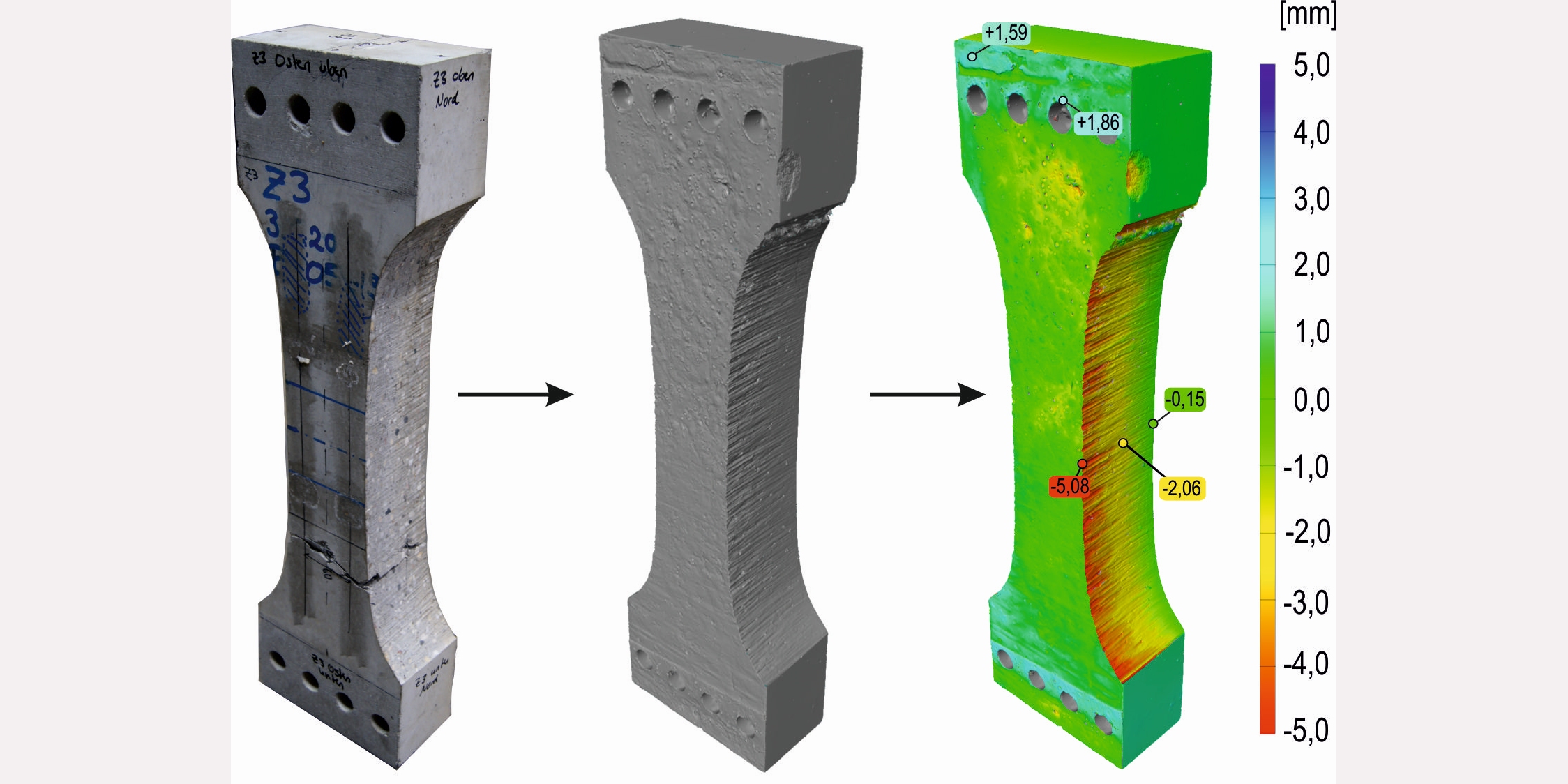

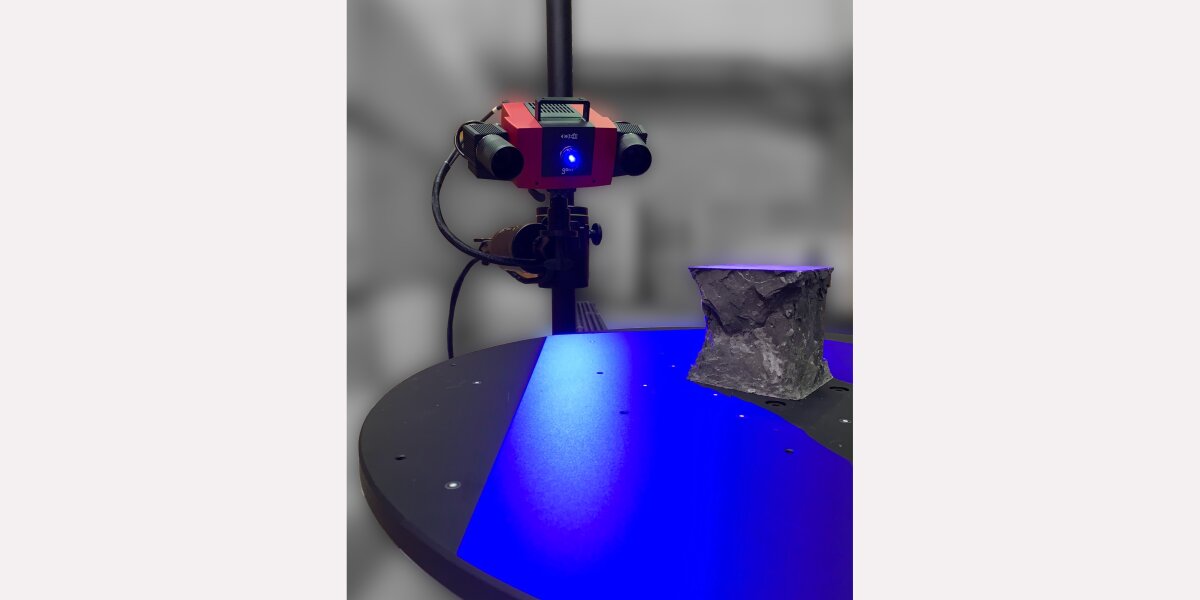

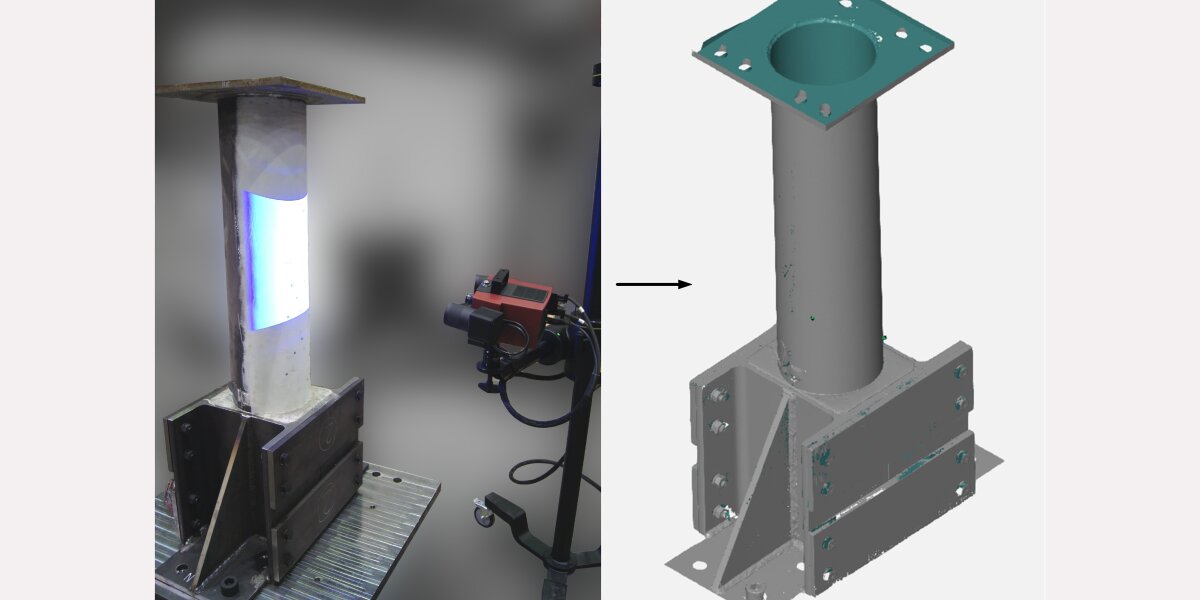

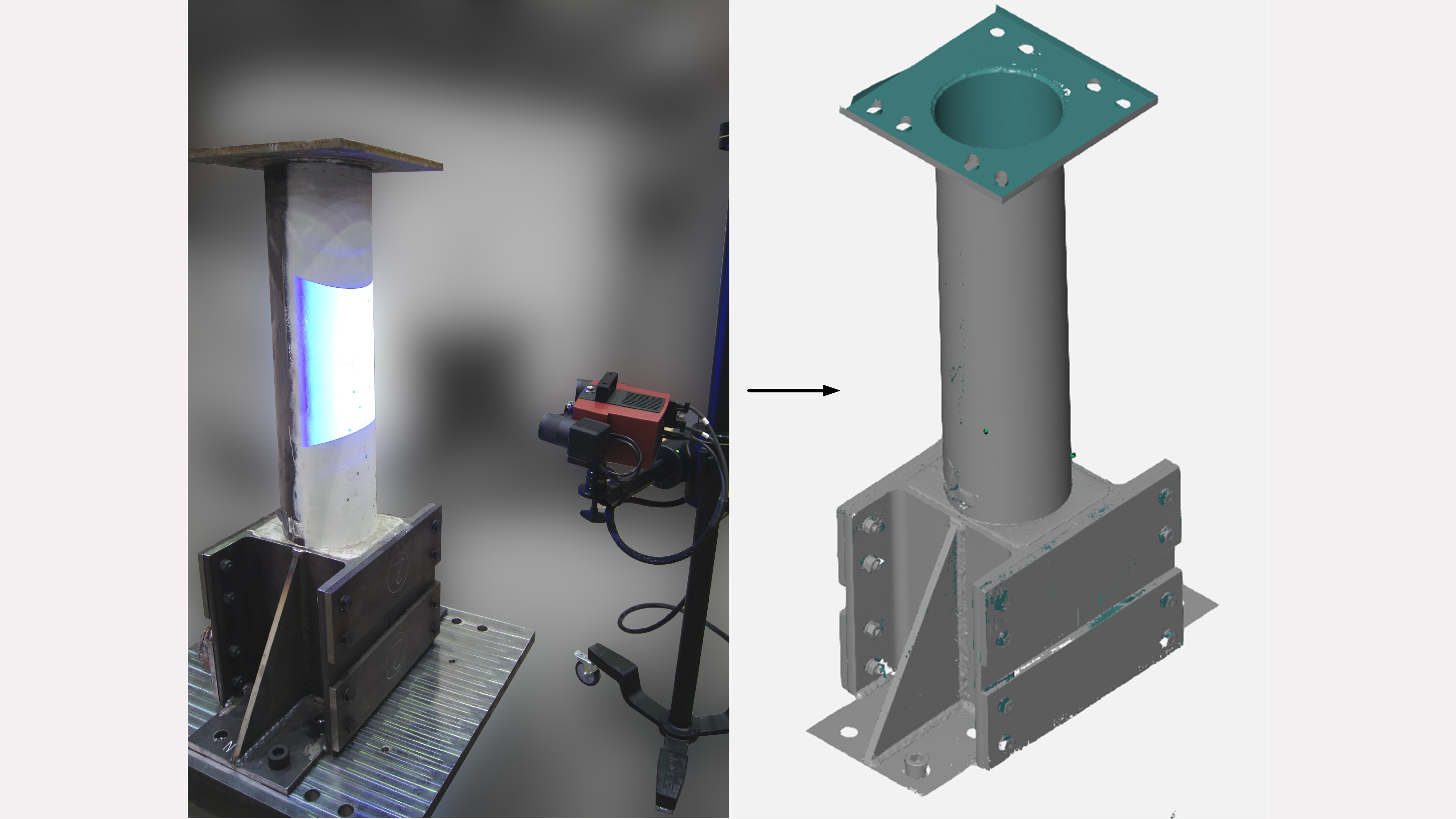

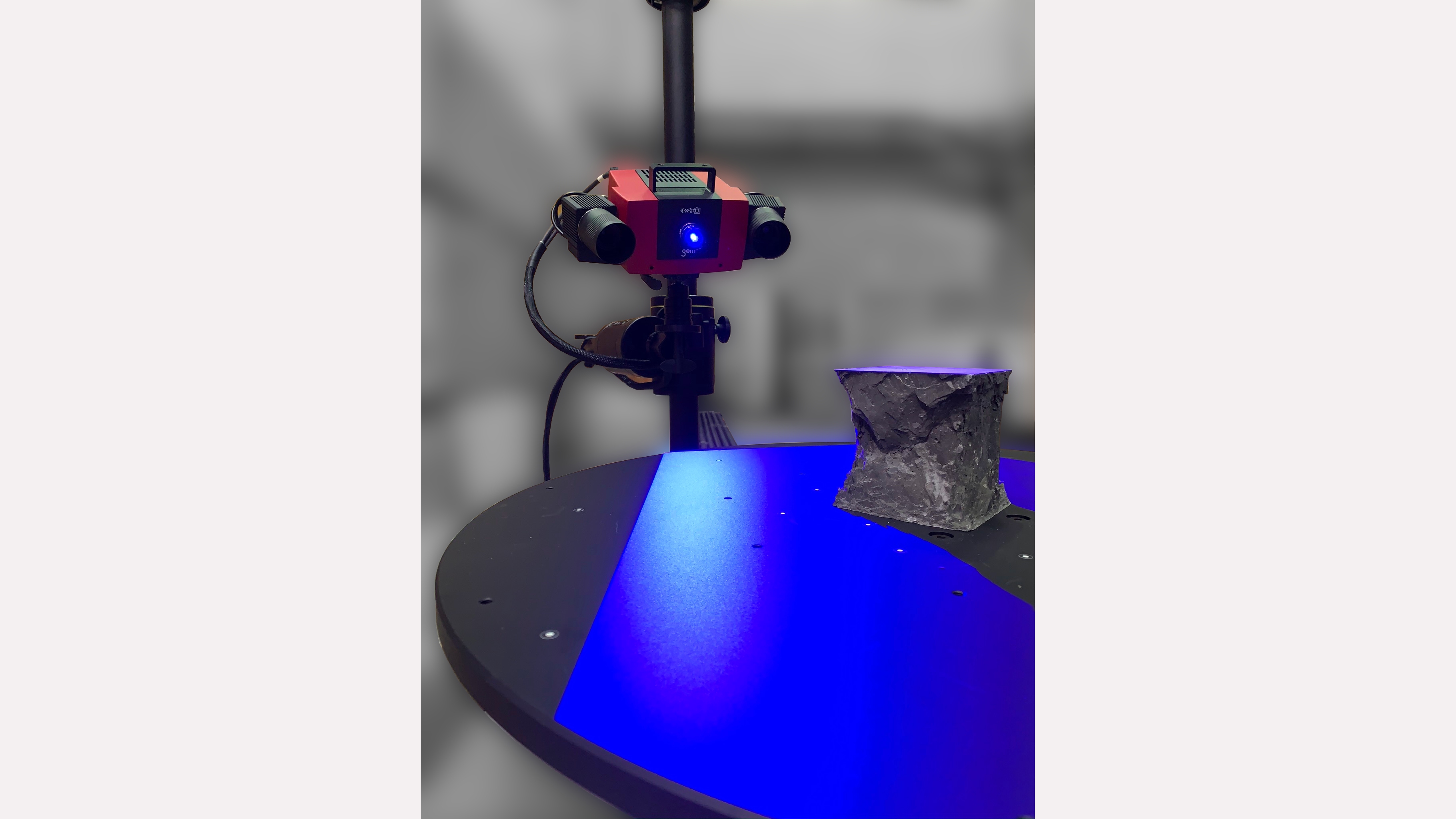

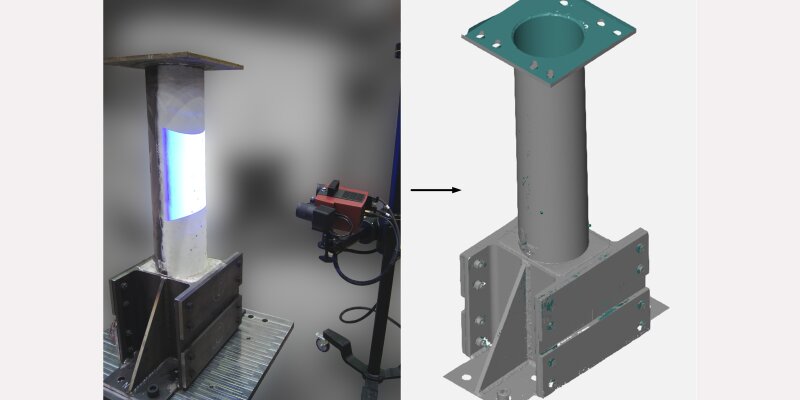

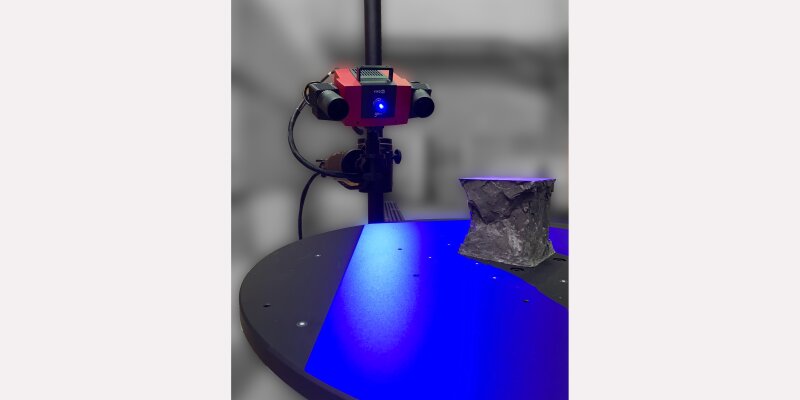

With the mobile 3D fringe light scanner ATOS from the company GOM, test specimens can be spatially measured. The projector projects a stripe pattern onto the surface of the test specimen. The stripe pattern is captured by high-resolution cameras and converted into measurement points. Additional measurement markers also enable the measurement of complex geometries.
| Technical Data | |
| Measurement points per scan | 8 millions (3357 x 2456 Pixel) |
| Measurement field | 350 x 250 mm² | 600 x 500 mm² |
| Accuracy | 0,01 mm |
| Rotary table | Diameter 640 mm | max. Table load 100 kg |
