Fiber optic measuring system – LUNA

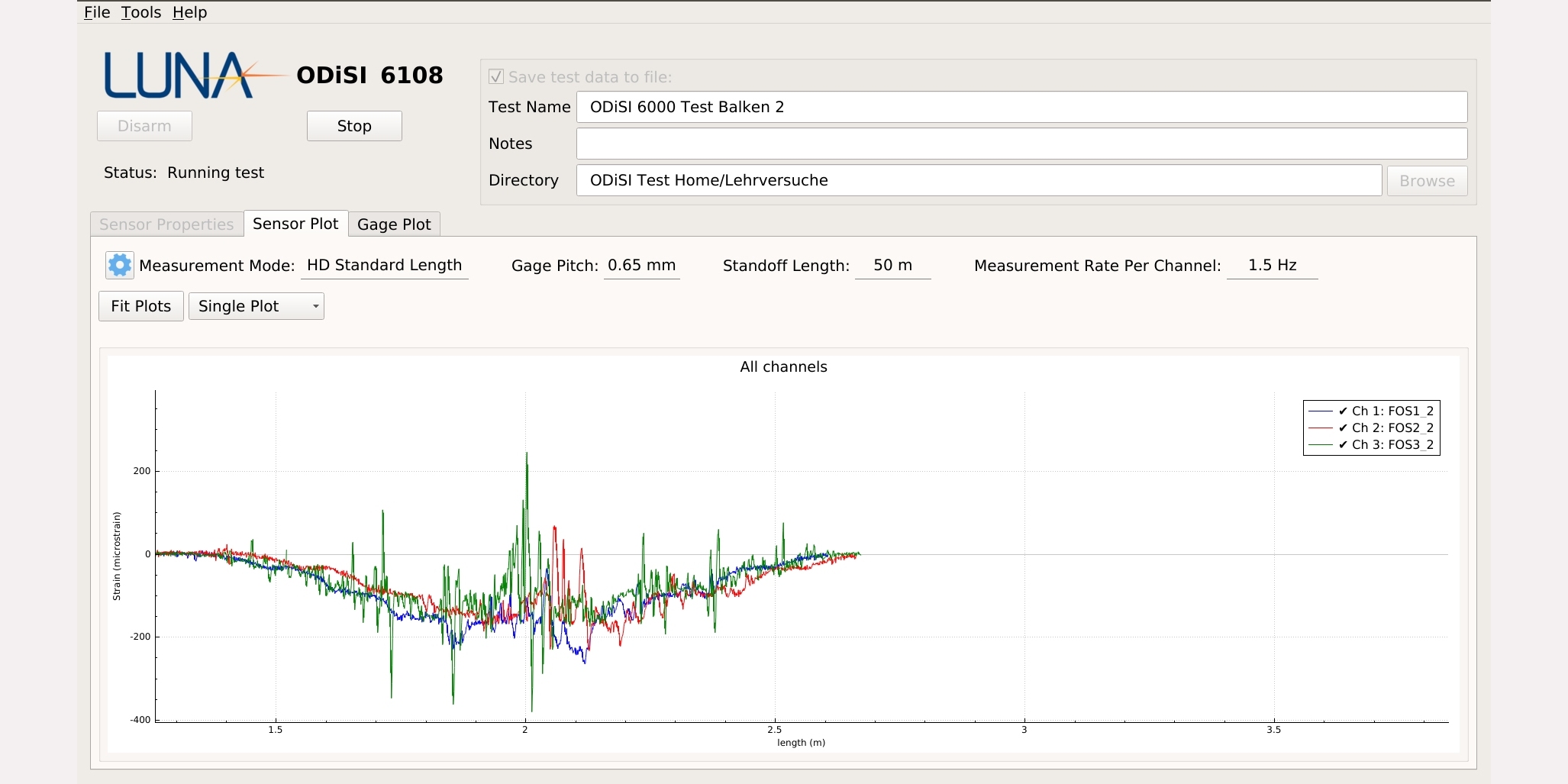

The fiber-optic measurement system LUNA (ODiSl 6108) is used to measure strain and temperature. The strain and temperature are measured quasi-continuously with a measurement point spacing of 0.65 to 2.6 mm. Eight separately connected measurement channels enable simultaneous measurement of strain and temperature changes. The sensors can be individually produced to optimize adaptation to the measurement task requirements.

Technical Data
Resolution 0,65 to 2,6 mm
Channels for simultaneous measurement 8 Channels
Maximum sensor length 10 m
Strain range 12.000 µm/m
Measurement accuracy 25 to 30 µm/m
Temperature range -40 °C to 200 °
