The following strain gauge (SG) variants are available for experimental investigations:
- Linear strip with a single measuring grid (simple strain measurement);
- Double SGs with two measuring grids (strains in bending rods);
- T-rosettes with two measuring grids (two-axis stress state analysis with known principal directions; strains in tension/compression rods);
- Rosettes with three measuring grids (two-axis stress state analysis with unknown principal directions);
- V-shaped SGs (strains in torsion rods; shear strains in shear rods in the area of the neutral fiber);
- Full-bridge SGs (strains in torsion rods as well as tension/compression rods; shear strains in shear rods in the area of the neutral fiber);

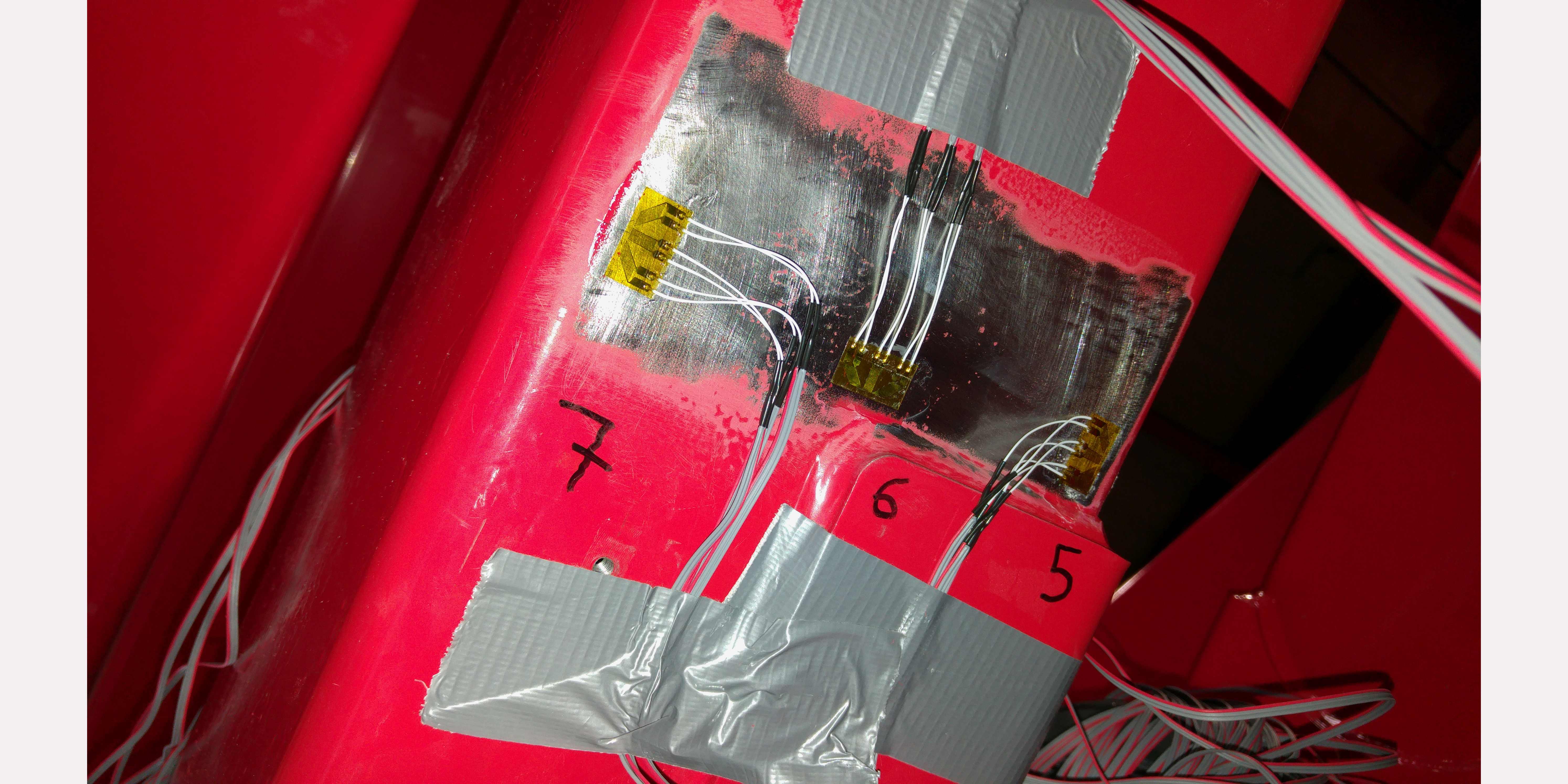

Strain measurement using edge rosette strain gauges

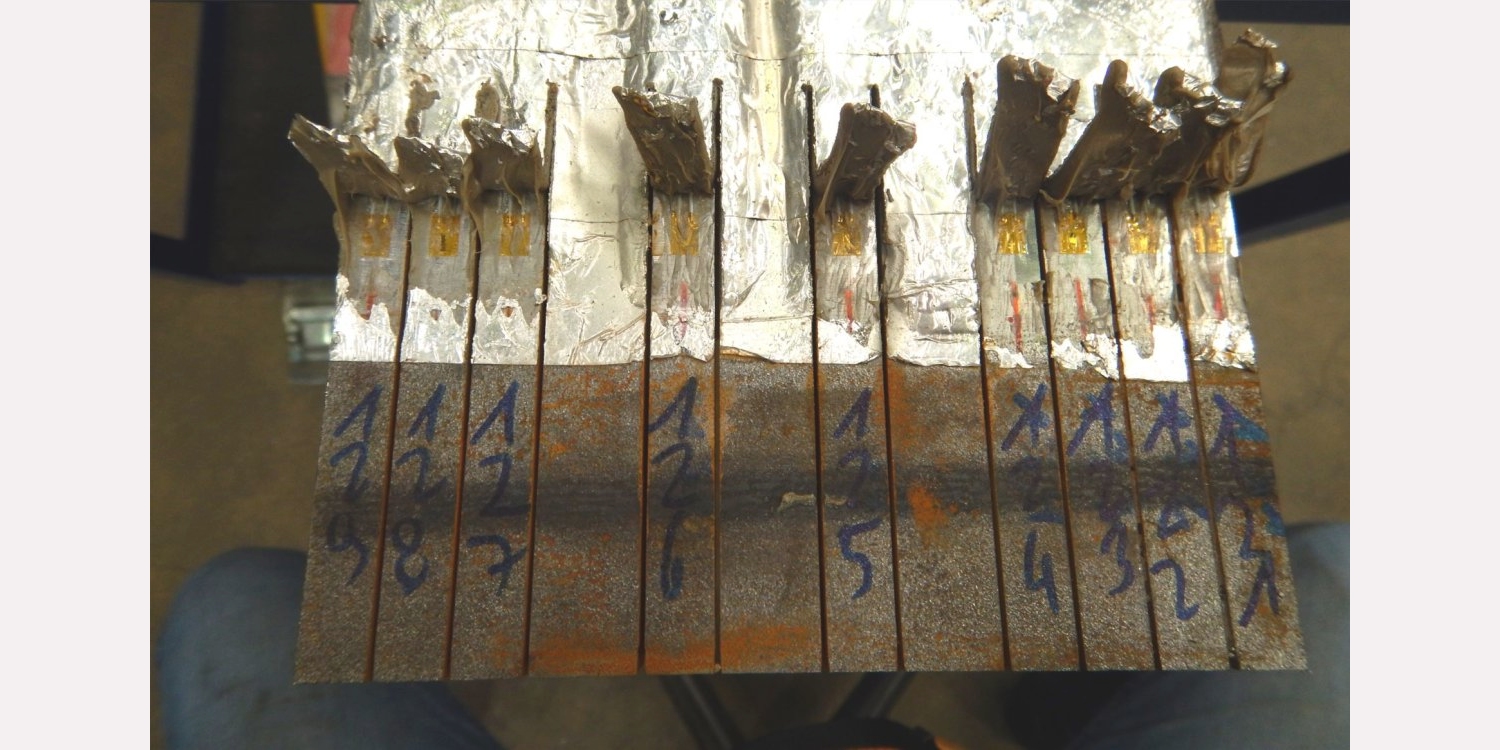

Residual stress measurement using linear strain gauges

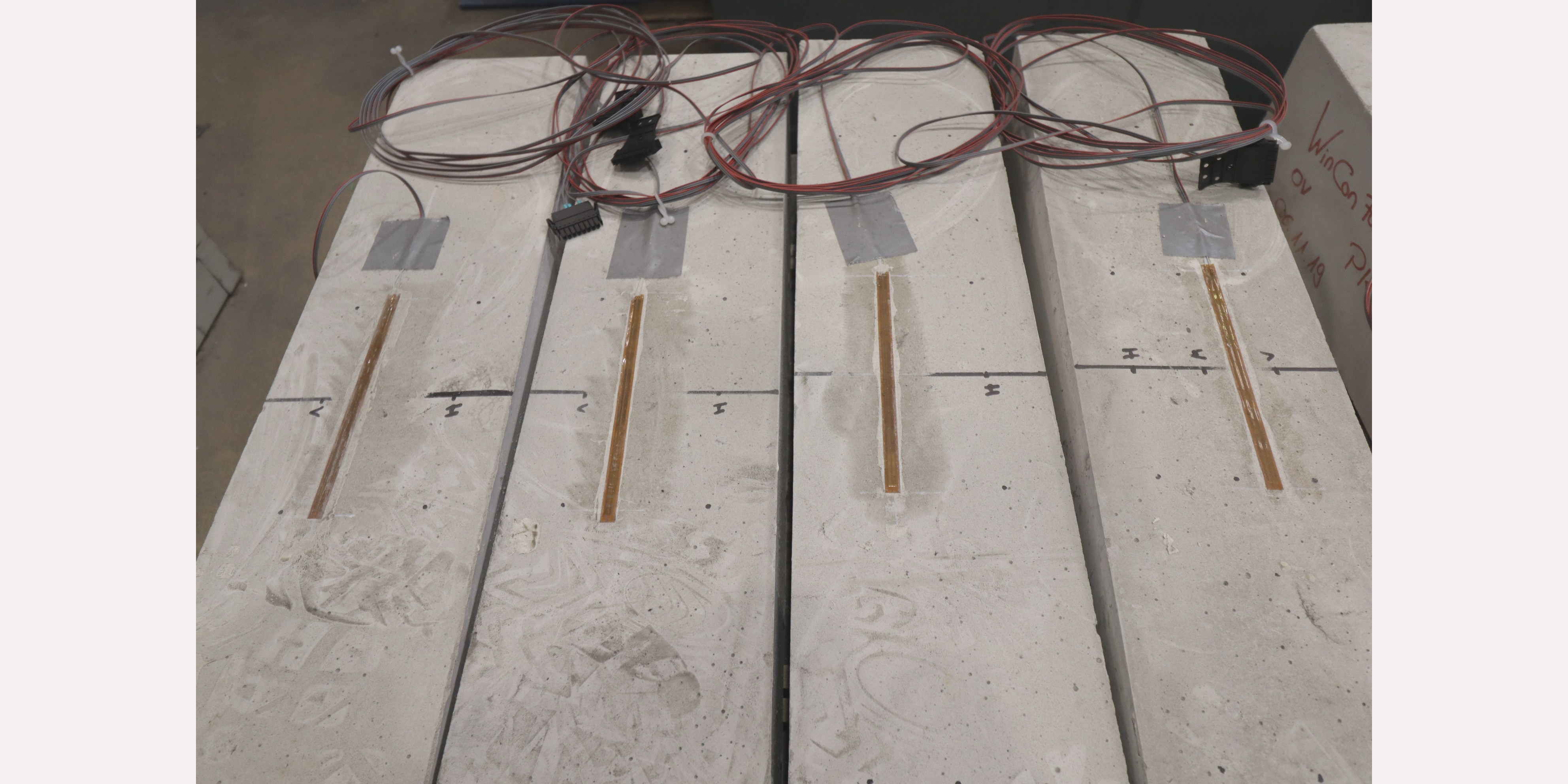

Strain measurement on concrete surfaces

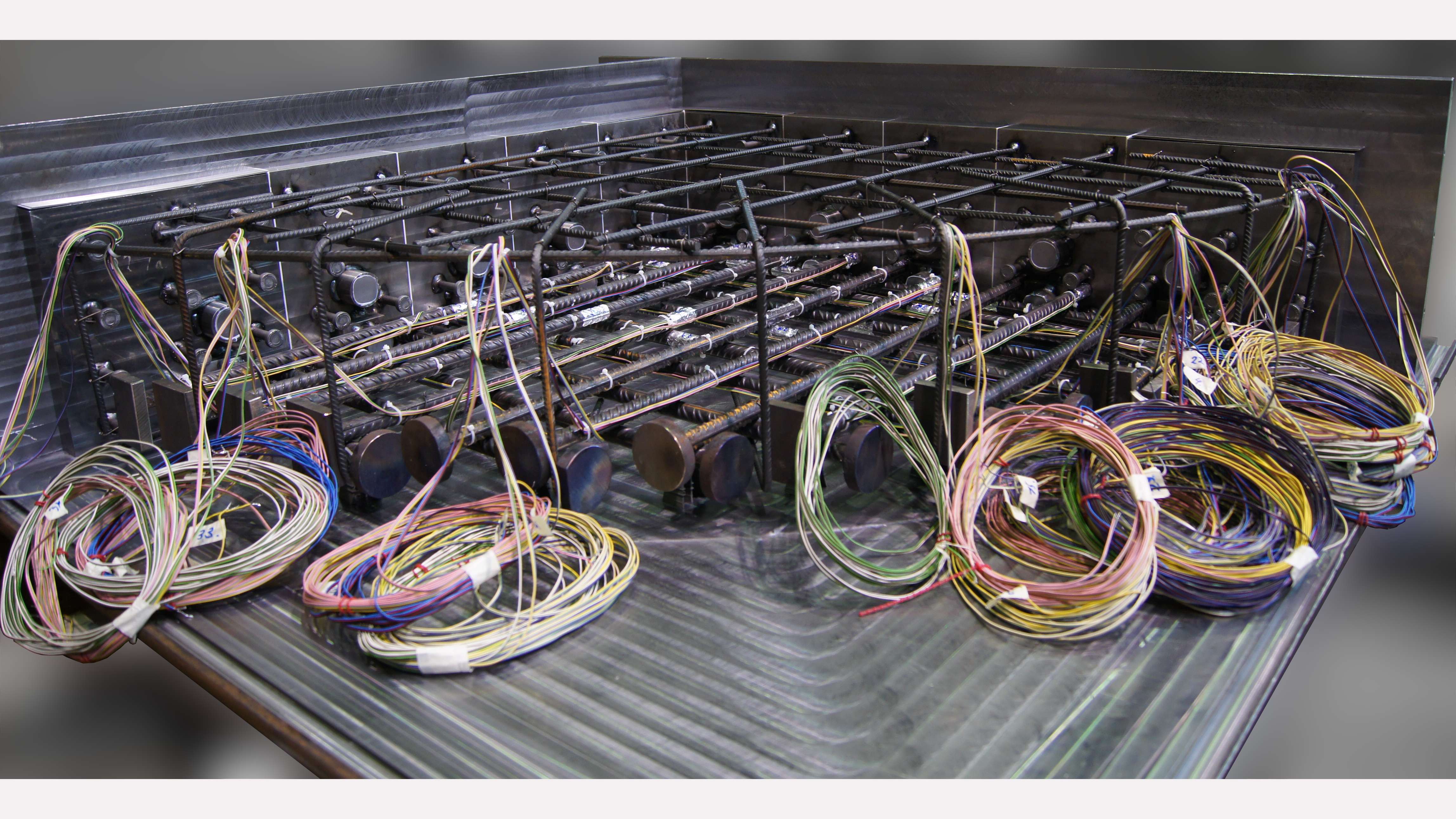

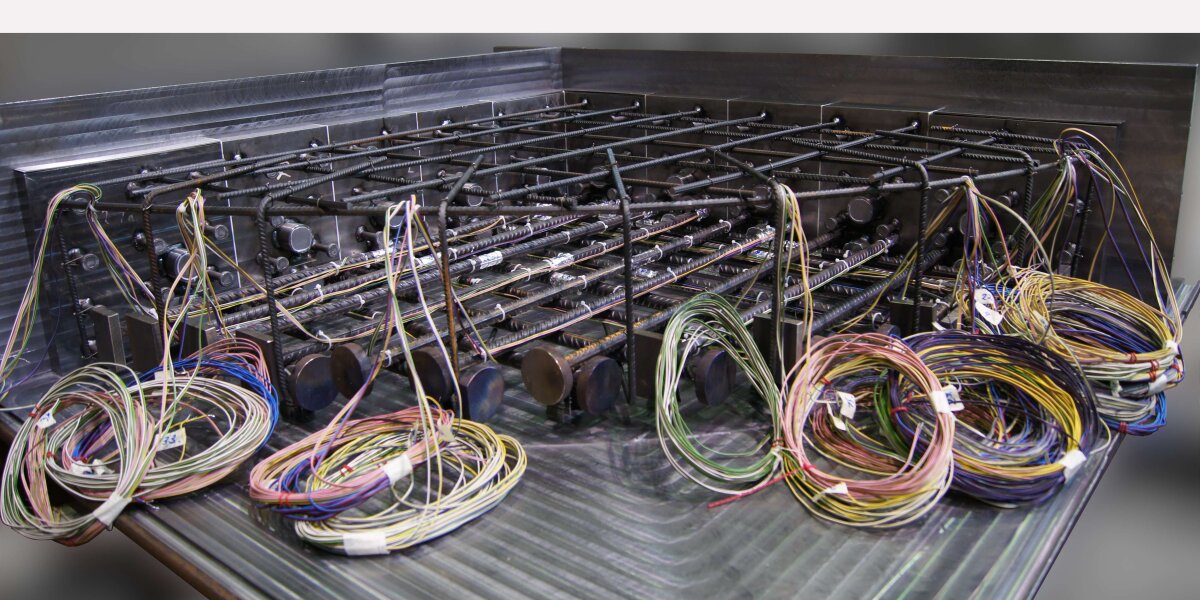

Strain measurement on concrete rebars
